- Cad eagle
- Proteus
- Diptrace
Then get the printout of it bottom layer(Without Mirroring) using Laser Printer
Polish The Coper Clad board using sand paper
Place the printout in the copper clad board and iron it until the paint copied to the copper board
After that remove the paper by washing smoothly

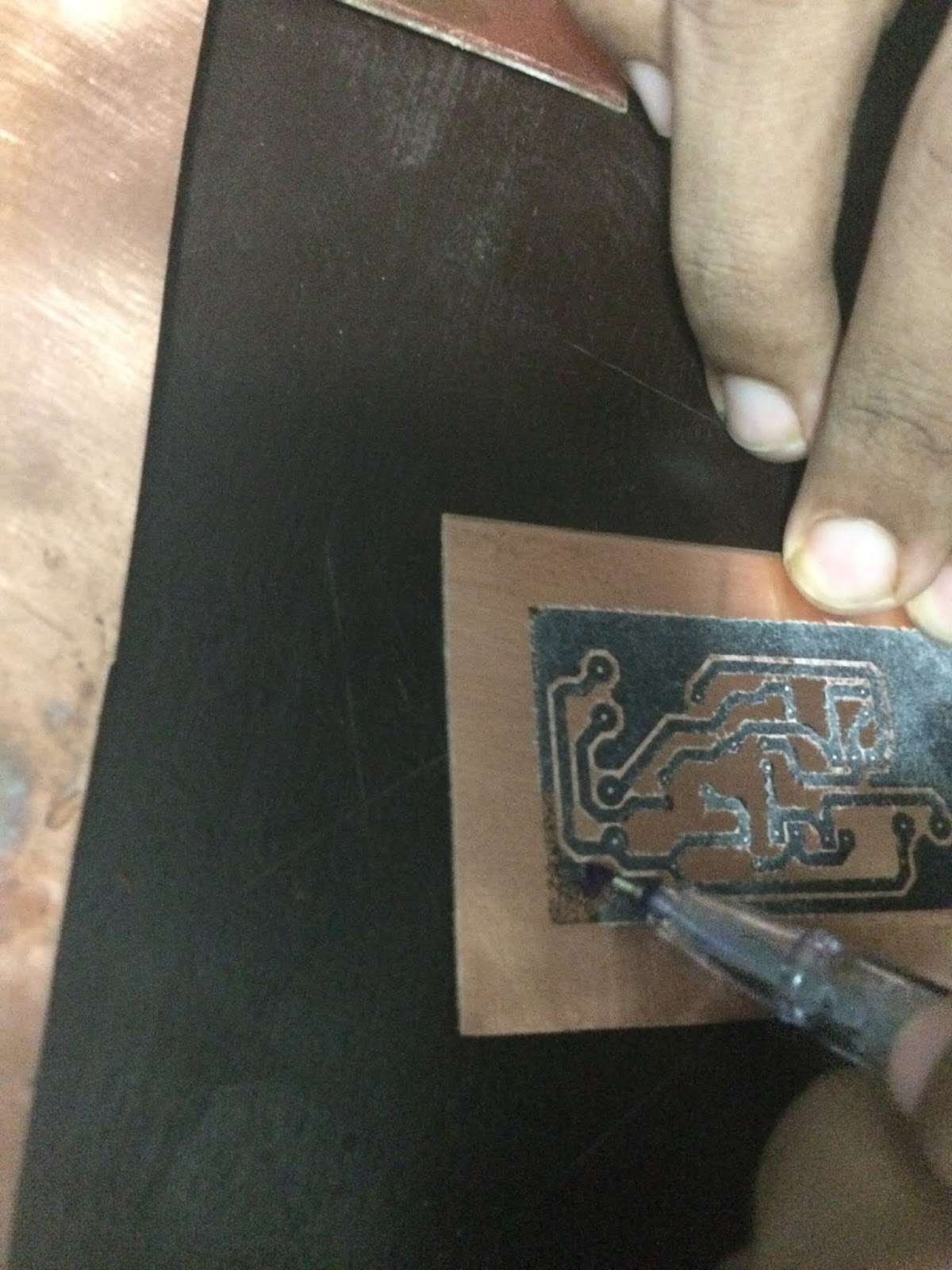

Repair the damage printed part using permanent marker pen
Place printed Board in Ferric Chloride until unwanted copper part removed
Wash and remove the paint
then drill the holes using correct drill bit (commonly drill bit = 0.8 mm)
Mount the component and solder
If You want top side of the board also can printed using same method if there is no top copper you can print components layout in the top site of board.(if you print the top side it must have get printout with mirroring)
